To understand the differences between Git merge, rebase and cherry-pick, we need to know these points:

  1. How does Git generally merge two commits into a new commit?
  2. How is a new commit created during the three types of operations?
  3. How is the new commit linked into the existing commit history?
  4. How does a branch tip move after the operation?

Merge two commits into a new commit

After first, we need to know how Git creates a new commit by merging two existing commits. There are two cases:

  • Fast-forward merge
    • If one of the commit is the ancestor of the other commit and we are merging the descendant commit into the ancestor commit, a fast-forward merge will be performed.
    • If we are merging the ancestor commit into the descendant commit, Git will do nothing and return a message “Already up to date.”.
    • When a fast-forward merge happens, no new commit will be created.
  • Three-way merge
    • It happens when the two input commits are not on a same history chain, i.e. no commit is the ancestor of the other one.
    • A three-way merge will create a new commit, which involves the two input commits and their most recent common ancestor.

    • During a three-way merge, commit diference is produced in this way:

      Let B be the first commit, C be the second commit and A be their most recent common ancestor. Git first computes changes from A to B (written as diff1) and from A to C (written as diff2). Next, Git creates a new commit by applying diff1 and diff2 to A. A three-way merge is line-based, which means if changes made in diff1 and diff2 are about different lines, there will be no merge conflicts, otherwise, if diff1 and diff2 contain changes on a same line, there will be a conflict and needs to be manually resolved.

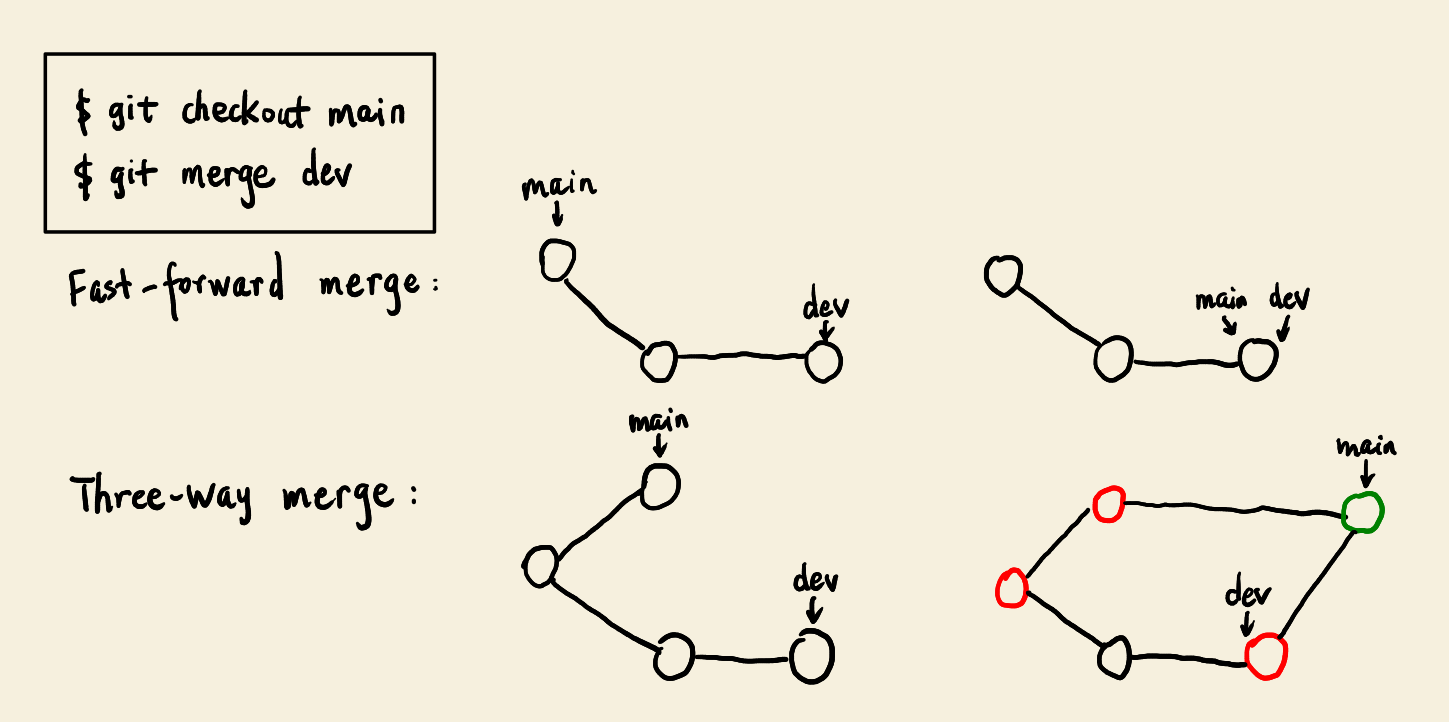

Merge

  • The target branch is the current branch and the source branch is the other branch.
  • Git creates a a new commit by merging tip commits in the two input branches.
  • If a fast-forward merge happens:
    • There is no new commit created.
    • The tip of the target branch moves to the same commit to which the tip of the source branch also points, i.e. the two tips overlap.
  • When a three-way merge happens:
    • A new commit is created.
    • The tip of the target branch moves to this new commit, while the tip of the source branch does not change.
    • The input two commits are the ancestors of this new commit.
  • We use merge when we want to keep the working history in a topic branch, even though divergent and merging branches will make the repository graph look messy.


N.B. If we use Gitlab for our software development, by default, every merge creates a merge commit, which makes the commit history look messy. We need to configure the merge method as “fast-forward merge” in Gitlab’s “Merge requests” setting.

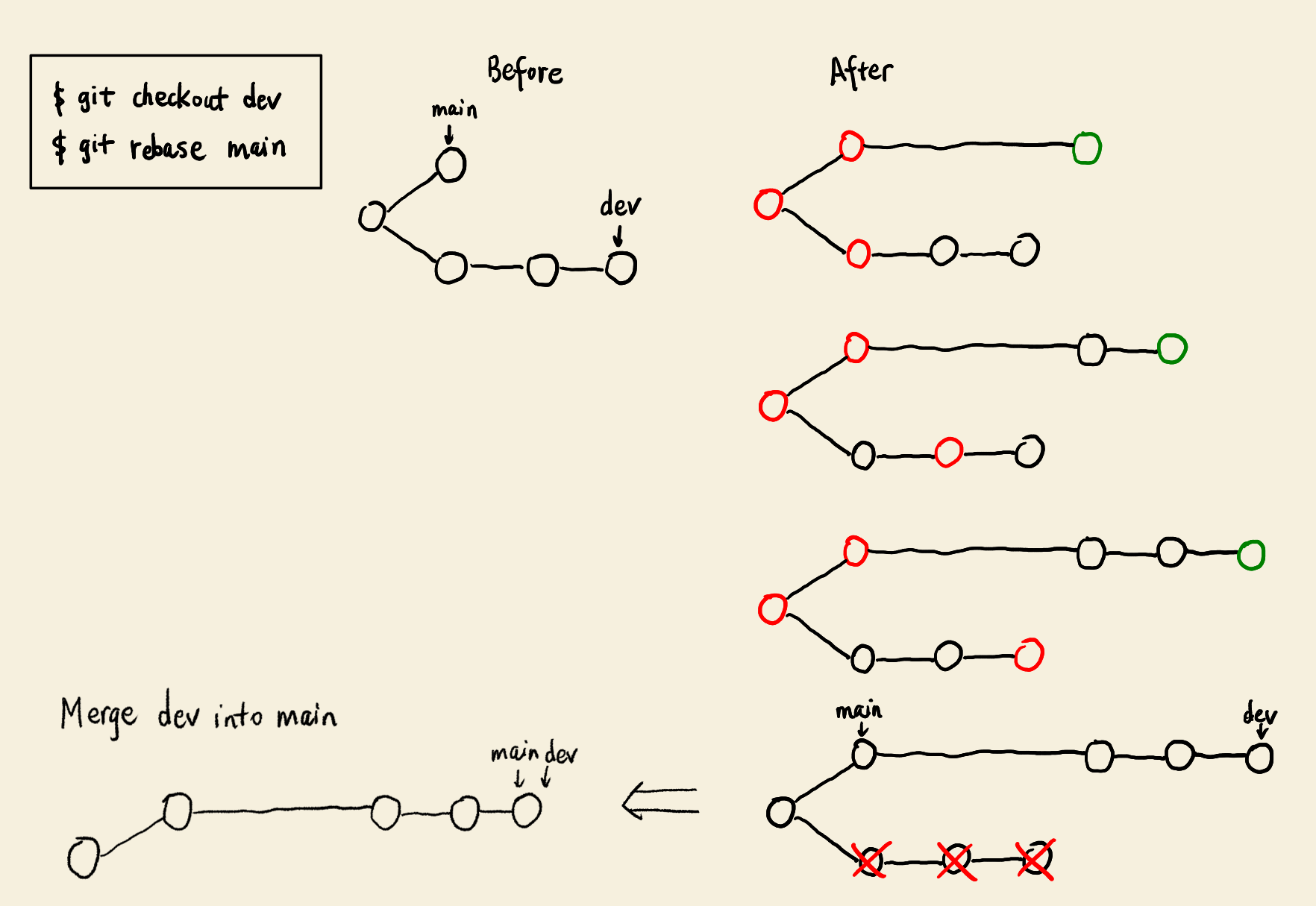

Rebase

  • The source branch is the current branch and the target branch is the other branch.
  • A range of commits are rebased from the source branch onto the target branch. For each of them, Git creates a new commit by merging this source commit with the tip commit in the target branch.
  • These newly created commits preserve the same chain relation as their corresponding commits in the source branch.
  • This chain of new commits is appended to the tip of the target branch, while the range of commits in the source branch before rebasing are deleted.
  • The tip of the current (source) branch moves to the last commit in this new commit chain and the tip of the target branch does not move.
  • We use rebase to keep a almost linear project history, which looks cleaner than Git merge. However, the original work in the topic branch is modified.
  • Handling conflicts
    • Resolve conflicts manually, then add or remove modified files and run git rebase --continue.
    • Skip the conflicting commit: git rebase --skip.
    • Use git rebase --abort to return to the state before rebasing.

  • Possible operation after rebase

    Since the tip of the target branch is now an ancestor of the source branch, we can fast-forward merge the target branch into the source branch, then delete the source branch.

    git checkout <target-branch>
git merge <source-branch>
git branch -d <source-branch>

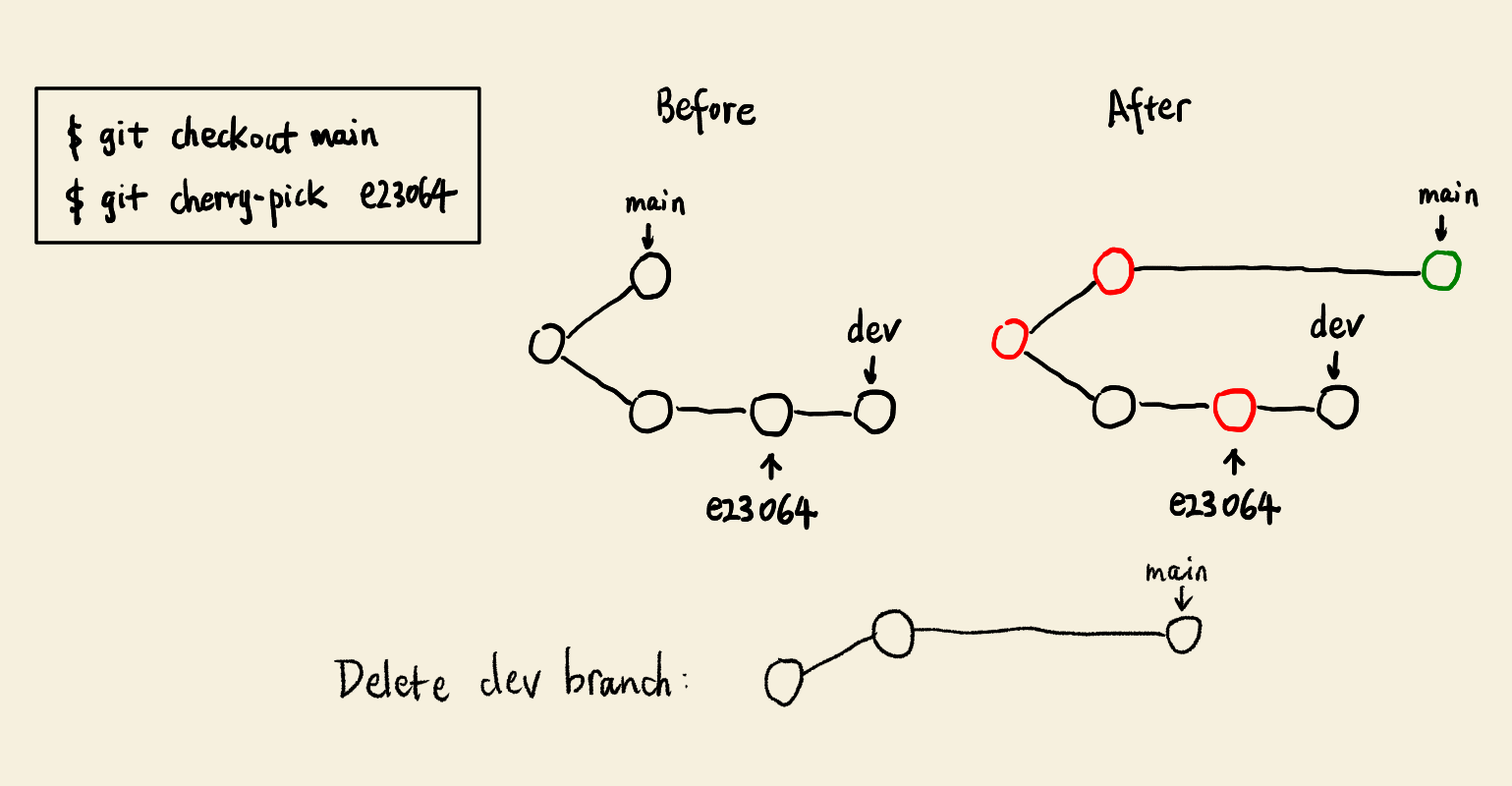

Cherry-pick

  • Same as merge, the target branch is the current branch and the source branch is the other branch.
  • One or several commits from the source branch can be cherry-picked into the target branch. For each cherry commit, Git creates a new commit by merging it with the tip commit of the current branch.
  • This sequence of new commits are put into a chain in the same order as their counterparts in the source branch. This new chain is appended to the tip of the target branch.
  • The cherry commits in the source branch are not changed or deleted.
  • The tip of the current branch moves to the last commit in the new commit chain, while the tip of the source branch does not move.
  • We use cherry-pick to acquire interested contributions from a topic branch into our working branch, while the commits in the topic branch are preserved.
  • Handling conflicts
    • Manually resolve conflicts, then add or remove files and run git cherry-pick --continue.
    • Skip the conflicting commit: git cherry-pick --skip.
    • Abort the cherry-pick and return to the state before: git cherry-pick --abort

  • Possible operation after cherry-pick

    After we cherry-pick interested commits from a topic branch, we may want to delete the topic branch by running git branch -D <topic-branch>. Do not use -d, otherwise there will be an error:

    error: The branch '<topic-branch>' is not fully merged.
If you are sure you want to delete it, run 'git branch -D dev'.
